Multi-Conductor CU 600V PVC THHN or TFFN/TFN PVC Control Cable Color Method 1 Table 1. Silicone Free

Type TC-ER Control Cable 600Volt Copper Conductors, Polyvinyl Chloride (PVC) with nylon layer Insulation THHN or TFFN/TFN Polyvinyl Chloride (PVC) Jacket, Control Cable Conductor Identification Method 1 Table 1. Silicone Free. VW-1 Rated.

...

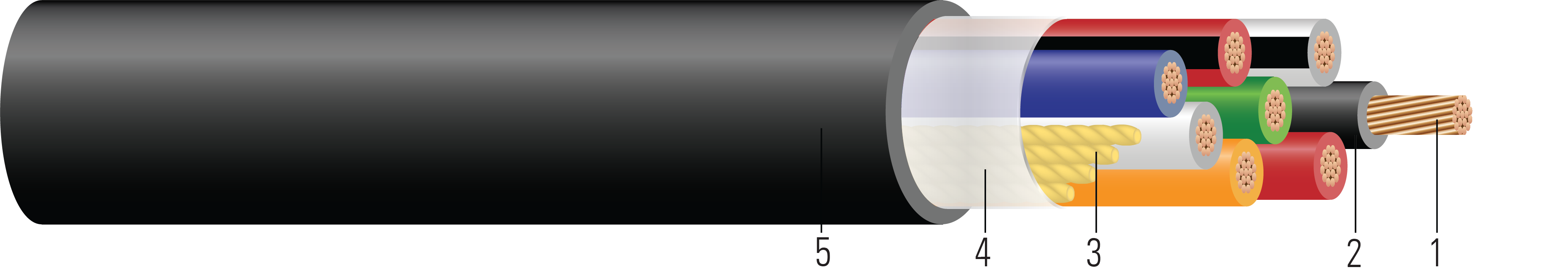

Construction:

  1. Conductor:7 strands class B compressed bare copper per ASTM B3 and ASTM B8 for 14, 12, and 10 AWG cables. Class K bare copper per ASTM B3 and B174 for 16 AWG (26 strands) and 18 AWG (16 strands) cables
  2. Insulation:Polyvinyl Chloride (PVC) with nylon layer 19 Mils thick for 18, 16, 14, 12 AWG cables and 24 Mils for 10 AWG cables, Type TFFN/TFN for 16 AWG cable and Type THHN or THWN for 14, 12 , 10 AWG cables. Types THHN or THWN are VW-1 Rated
  3. Filler:Polypropylene filler on cables with 5 or less conductors
  4. Binder:Polyester flat thread binder tape applied for cables with more than 5 conductors
  5. Overall Jacket:Polyvinyl Chloride (PVC) Jacket

Applications and Features:

Southwire’s 600 Volt Type TC-ER control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 75°C in wet locations and 90°C in dry locations, 105°C for emergency overload, and 150°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10. Silicone Free. Types THHN or THWN are VW-1 Rated.

Specifications:

  • ASTM B3 Standard Specification for Soft or Annealed Copper Wire
  • ASTM B8 Concentric-Lay-Stranded Copper Conductors
  • UL 44 Thermoset-Insulated Wires and Cables
  • UL 83 Thermoplastic Insulated Wires and Cables
  • UL 1277 Electrical Power and Control Tray Cables
  • UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
  • ICEA S-58-679 Control Cable Conductor Identification Method 1 Table 1
  • ICEA S-73-532 Standard for Control, Thermocouple Extension and Instrumentation Cables
  • ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
  • Sample Print Legend:

    {SQFTG} SOUTHWIRE{R} XX AWG (XXXmm2) X/C PVC/NYLON TYPE TC-ER E75755 (UL) 600V 90{D}C DRY 75{D}C WET OIL RES I SUNLIGHT RESISTANT DIRECT BURIAL MADE IN USA ROHS-2
    Table 1 – Physical and Electrical Data
    Stock NumberCond. SizeCond. NumberDiameter Over Cond.Insul. ThicknessJacket ThicknessApprox. ODCopper WeightApprox. WeightDC Resistance @ 25°CAC Resistance @ 90°CMin Bending RadiusAllowable Ampacity At 60°C *Allowable Ampacity 75°C *Allowable Ampacity 90°C *
    AWGNo.inchmilmilinchlb/1000ftlb/1000ftΩ/1000ftΩ/1000ftinchAmpAmpAmp
    18 AWG
    TBA1820.04615450.26815366.548.341.1666
    TBA1830.04615450.28015456.548.341.1666
    5778781840.04621450.30420546.6698.6761.2555
    TBA1850.04615450.33625666.548.341.3555
    TBA1860.04615450.36230766.548.341.4555
    TBA1880.04615450.38940946.548.341.6444
    TBA18100.04615450.442501166.548.341.8333
    TBA18120.04615450.458601316.548.341.8333
    TBA18160.04615450.508801656.548.342.0333
    TBA18190.04615450.564952086.548.342.3333
    TBA18240.04615450.6581202606.548.342.6333
    16 AWG
    TBA1620.05619450.27916444.1805.2261.1888
    TBA1630.05619450.29424564.1805.2261.2888
    TBA1640.05619450.31832694.1805.2261.3888
    TBA1650.05619450.34540824.1805.2261.4666
    TBA1660.05619450.37348974.1805.2261.5666
    TBA1670.05619450.373561064.1805.2261.5666
    TBA1680.05619450.402641214.1805.2261.6555
    TBA1690.05619450.430721354.1805.2261.7555
    TBA16100.05619450.467811524.1805.2261.9555
    TBA16120.05619450.482971744.1805.2261.9444
    TBA16150.05619600.5641212294.1805.2262.3444
    TBA16190.05619600.5921532734.1805.2262.4444
    TBA16200.05619600.6211612914.1805.2262.5444
    TBA16250.05619600.6862013564.1805.2262.7444
    TBA16300.05619600.7242424154.1805.2262.9333
    TBA16370.05619600.7802984984.1805.2263.1333
    14 AWG
    TBA1420.07019450.30526582.6303.2881.2151515
    TBA1430.07019450.32238752.6303.2881.3151515
    TBA1440.07019450.35051932.6303.2881.4141515
    TBA1450.07019450.380641132.6303.2881.5141515
    TBA1460.07019450.413771332.6303.2881.7141515
    TBA1470.07019450.413901472.6303.2881.7121515
    TBA1480.07019450.4461021682.6303.2881.8121515
    TBA1490.07019450.4781151892.6303.2881.9121515
    TBA14100.07019600.5541282192.6303.2882.291112
    TBA14120.07019600.5681542602.6303.2882.391112
    TBA14150.07019600.6271923182.6303.2882.591112
    TBA14190.07019600.6582433832.6303.2882.691112
    TBA14200.07019600.6912564082.6303.2882.891112
    TBA14250.07019600.7653205022.6303.2883.18911
    TBA14300.07019600.8103845872.6303.2883.28911
    TBA14370.07019800.9134747412.6303.2883.77810
    12 AWG
    TBA1220.08719450.34041791.6602.0751.4202020
    TBA1230.08719450.360611041.6602.0751.4202020
    TBA1240.08719450.392811311.6602.0751.6162020
    TBA1250.08719450.4281021601.6602.0751.7162020
    TBA1260.08719450.4661221891.6602.0751.9162020
    TBA1270.08719450.4661432111.6602.0751.9141720
    TBA1280.08719450.5041632411.6602.0752.0141720
    TBA1290.08719600.5721832871.6602.0752.3141720
    TBA12100.08719600.6212043221.6602.0752.5101215
    TBA12120.08719600.6412443711.6602.0752.6101215
    TBA12150.08719600.7103054571.6602.0752.8101215
    TBA12190.08719600.7463875551.6602.0753.0101215
    TBA12200.08719600.7854075901.6602.0753.1101215
    TBA12250.08719800.9115097611.6602.0753.691113
    TBA12300.08719800.9636118911.6602.0753.991113
    TBA12370.08719801.03775310751.6602.0755.281012
    10 AWG
    TBA1020.11124450.407651171.0401.3001.6303030
    TBA1030.11124450.433971561.0401.3001.7303030
    TBA1040.11124450.4731301991.0401.3001.9242830
    TBA1050.11124450.5191622441.0401.3002.1242830
    TBA1060.11124600.5961943061.0401.3002.4242830
    TBA1070.11124600.5962273401.0401.3002.4212428
    TBA1080.11124600.6452593891.0401.3002.6212428
    TBA1090.11124600.6932914381.0401.3002.8212428
    TBA10100.11124600.7553244921.0401.3003.0151720
    TBA10120.11124600.7803895701.0401.3003.1151720
    TBA10150.11124800.9084867371.0401.3003.6151720
    TBA10190.11124800.9546158941.0401.3003.8151720
    TBA10200.11124801.0036489501.0401.3005.0151720
    TBA10250.11124801.11281011731.0401.3005.6131518
    TBA10300.11124801.17897113771.0401.3005.9131518
    TBA10370.11124801.271119816671.0401.3006.4121416
    All dimensions are nominal and subject to normal manufacturing tolerances
    ◊ Cable marked with this symbol is a standard stock item
    † Ampacities are based on Table 310.16 of the NEC 2020 Edition. Ampacities of insulated conductors rated up to and including 2000 Volts with not more than three current-carrying conductors in raceway, cable or direct buried based on ambient temperature of 30ºC (86ºF). Ampacities have been adjusted for more than three current-carrying conductors based on Table 310.15(C) 1.
    2/C cables are not listed as TC-ER

    Revision:
